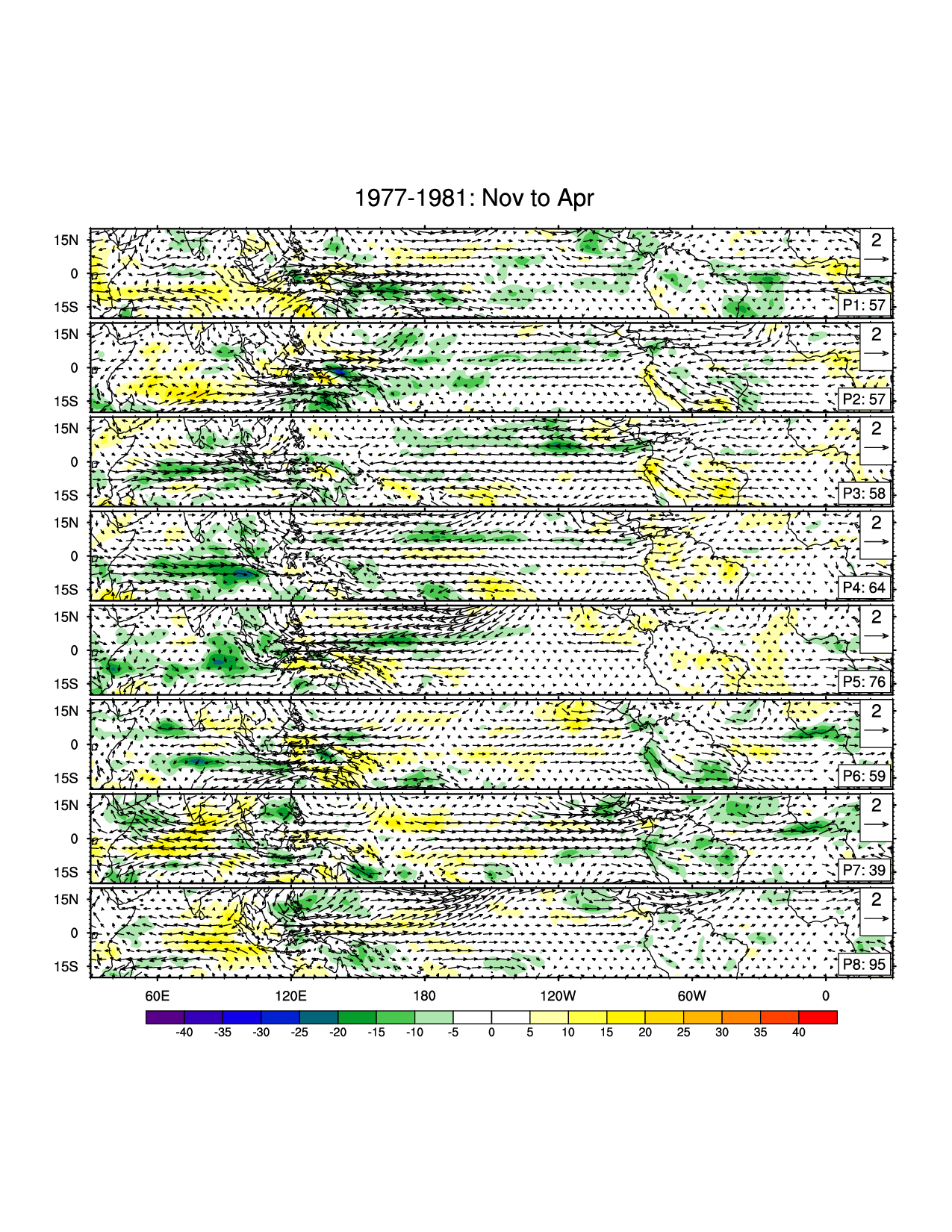

This module computes many of the diagnostics described by the WGNE MJO Task Force and developed by Dennis Shea for observational data. Using daily precipitation, outgoing longwave radiation, zonal wind at 850 and 200 hPa and meridional wind at 200 hPa, the module computes anomalies, bandpass-filters for the 20-100 day period, calculates the MJO Index as defined as the running variance over the bandpass filtered data, performs an EOF analysis, and calculates lag cross-correlations, wave-number frequency spectra and composite life cycles of MJO events.
Full Documentation and Contact Information
QBOi.EXP1.AMIP.001 |
---|
NCEP Reanalysis |
lag lat lon summer QBOi.EXP1.AMIP.001 | lag lat lon summer ERA |
---|---|
lag lat lon winter QBOi.EXP1.AMIP.001 | lag lat lon winter ERA |
lag lat lon annual QBOi.EXP1.AMIP.001 | lag lat lon annual ERA |
summer QBOi.EXP1.AMIP.001 | summer QBOi.EXP1.AMIP.001 | summer ERA |
---|---|---|
winter QBOi.EXP1.AMIP.001 | winter QBOi.EXP1.AMIP.001 | winter ERA |
